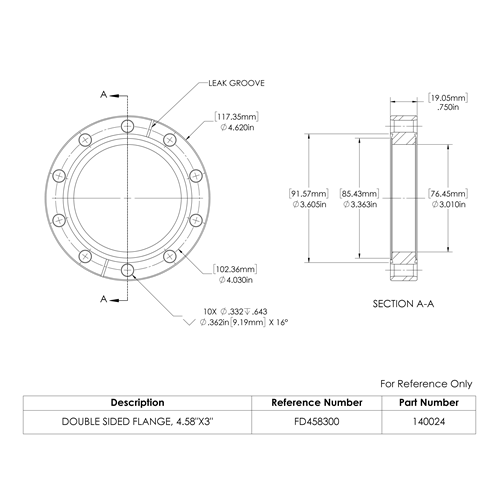

Double Sided Flange, 4.58"x3"

Double Sided Flange, 4.58"x3"

Part Number / SKU

140024

Contact MDC for Price

Availability: 6 Weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

140024.SLDDRW

140024_A.PDF

140024.SLDPRT

140024_A.STEP


140024_A.DWG

140024_TechnicalSpecs.rtf

Skip to the end of the images gallery

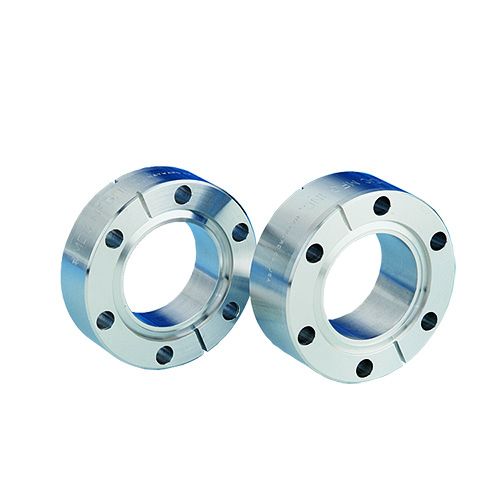

main product photo

Skip to the beginning of the images gallery

Double Sided Flange, 4.58"x3"

More Information

Specifications

Specifications
Weight (lb)	2.00
Bolt Circle Diameter	3.628 inch
Bolt Hole Diameter	0.332 inch
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	10
Bolt Hole Type	Clearance
Flange Size	DN75CF 117mm \| 4.625 " (4 5/8") OD
Flange Type	ConFlat CF Flange
Internal Diameter (ID)	63.5mm \| 3 Inch ID Nominal (3.010")
