Double Sided Flange, 10"x8"

Double Sided Flange, 10"x8"

Part Number / SKU

140033

$519.75

Availability: In Stock

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

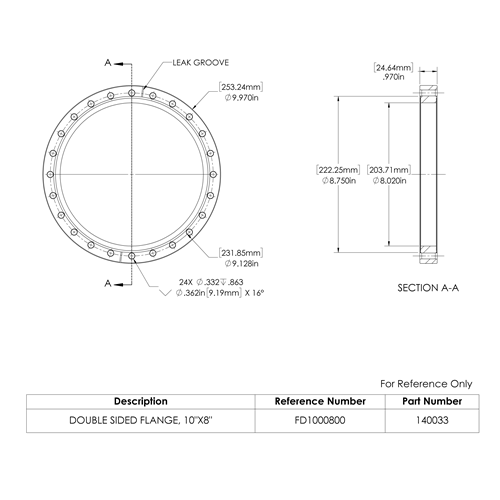

140033_A.PDF

140033.SLDPRT


140033_TechnicalSpecs.rtf

140033_A.STEP

140033.SLDDRW

140033_A.DWG

Skip to the end of the images gallery

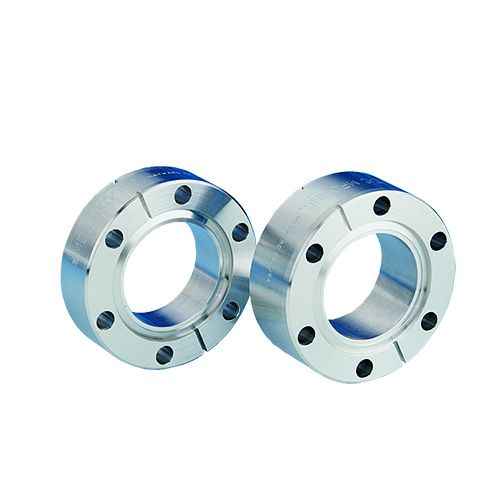

main product photo

Skip to the beginning of the images gallery

Double Sided Flange, 10"x8"

More Information

Specifications

Specifications
Weight (lb)	7.50
Bolt Circle Diameter	9.128 inch
Bolt Hole Diameter	0.332 inch
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Number of Bolt Holes	24
Bolt Hole Type	Clearance
Flange Size	DN200CF 254mm \| 10.00" OD
Flange Type	ConFlat CF Flange
Internal Diameter (ID)	203.2mm \| 8 Inch ID Nominal (8.020")
