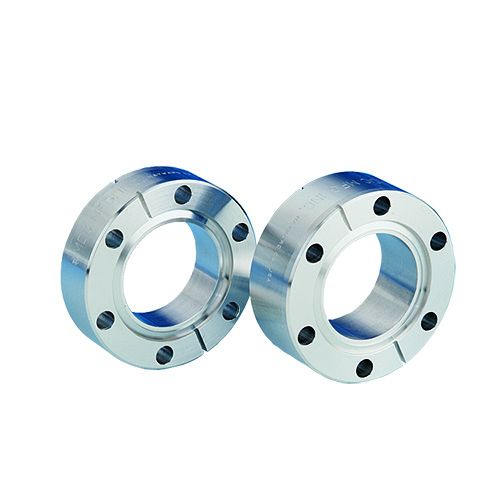

Double Sided Flange, 13.25"x10"

Part Number / SKU
140035
$840.00
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Double Sided Flange, 13.25"x10"
140035.stp (293.90 kB)
140035_FR_dwg (4.68 kB)
140035_SC_dwg (6.21 kB)
140035_sc_dxf (3.91 kB)
140035_fr_dxf (2.81 kB)

More Information

Specifications

Specifications
Weight (lb) 18.000000
Bolt Circle Diameter 13.125 inch
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Size DN275CF 336mm | 13.25" (13 1/4") OD
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 10 Inch Nominal (9.750)
