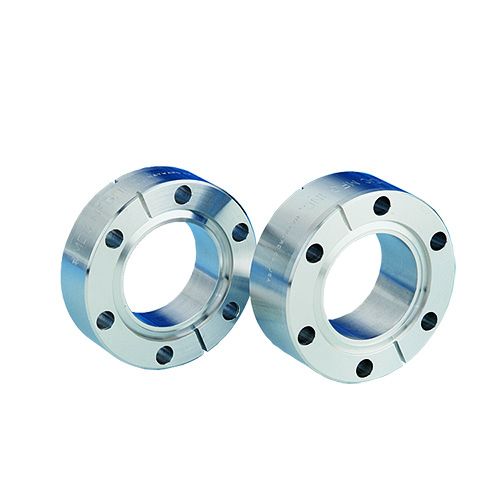

Double Sided Flange, 13.25"x10.75"

Part Number / SKU
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
Double Sided Flange, 13.25"x10.75"
140036.stp (293.94 kB)
140036_fr_dxf (2.81 kB)
140036_SC_dwg (6.07 kB)
140036_sc_dxf (3.82 kB)
140036_FR_dwg (4.68 kB)

More Information


Weight (lb) 14.500000
Bolt Circle Diameter 13.125 inch
Bolt Hole Diameter 0.390 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 30
Bolt Hole Type Clearance
Flange Size DN275CF 336mm | 13.25" (13 1/4") OD
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 10-3/4 Inch Nominal (10.50)
