90 deg Elbow, 2.75" Flange

90 deg Elbow, 2.75" Flange

Part Number / SKU

403002

Contact MDC for Price

Availability: 6 Weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

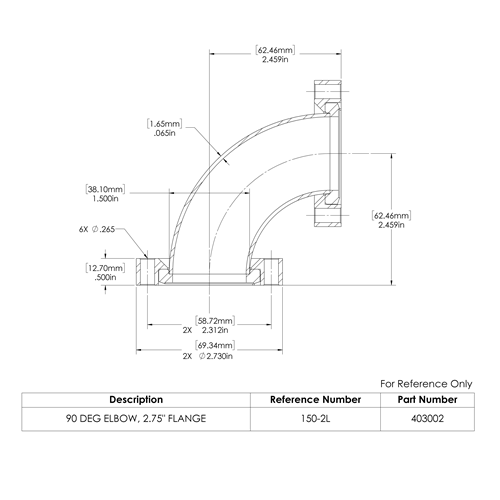

403002_B.PDF

403002_B.DWG

403002.SLDDRW

403002_B.STEP

403002_TechnicalSpecs.rtf

403002.SLDASM

Skip to the end of the images gallery

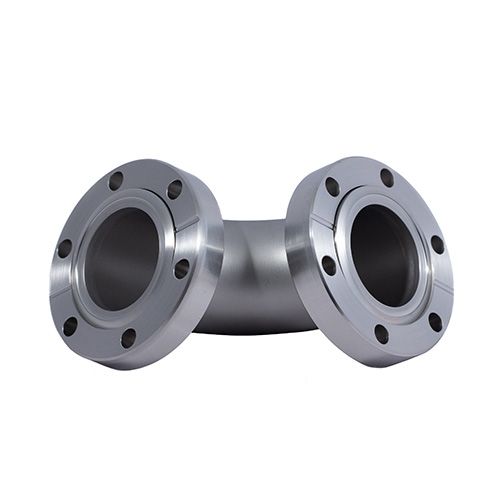

main product photo

Skip to the beginning of the images gallery

90 deg Elbow, 2.75" Flange

More Information

Specifications

Specifications
Weight (lb)	1.50
Bend Type	Radius
Length	2.46
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Wall Thickness	0.065
Flange Size	DN25CF 54mm \| 2.125" (2 1/8") OD
Flange Type	ConFlat CF Flange
Tube Outer Diameter	1.5
