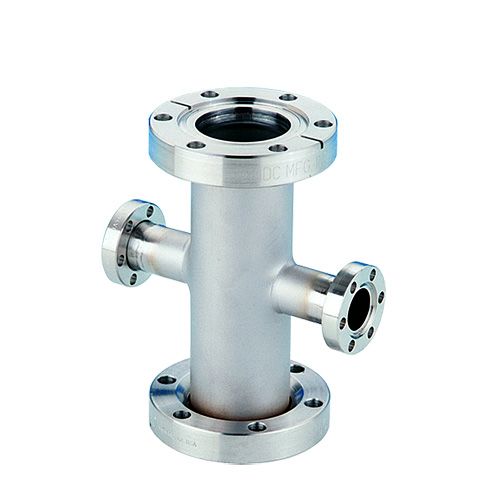

Reducing 4-Way Cross, 2.75" x 1.33" OD (DN40CF to DN16CF) ConFlat Flange
Part Number / SKU
405037
$219.05
Availability:
3 Weeks
- ConFlat (CF) to ConFlat connections of different size flanges
- Each axis has one rotatable flange
- Through-hole bolt hole flanges
More Information
Specifications
| Weight (lb) | 2.50 |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Reference Number | 150-4-075 |
| Vacuum Series | Ultra High Vacuum (UHV) |
| Wall Thickness | Main: 0.065" (1.50" Tube) | Reducer: 0.035" (0.75" Tube) |
| Flange Size | DN40CF 70mm | 2.75" (2 3/4") OD |
| Flange Type | ConFlat CF Flange |
| Reducer Flange | 1.33 Inch OD Mini (DN16) |
