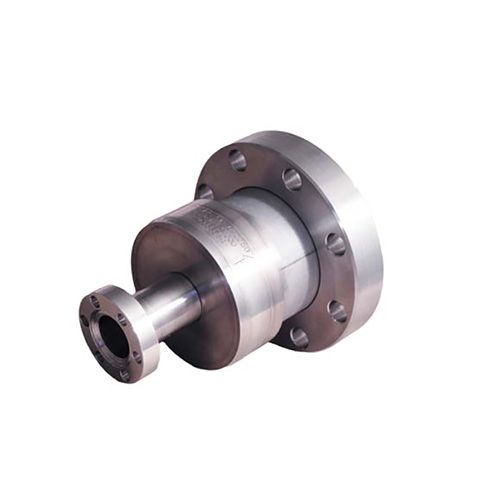

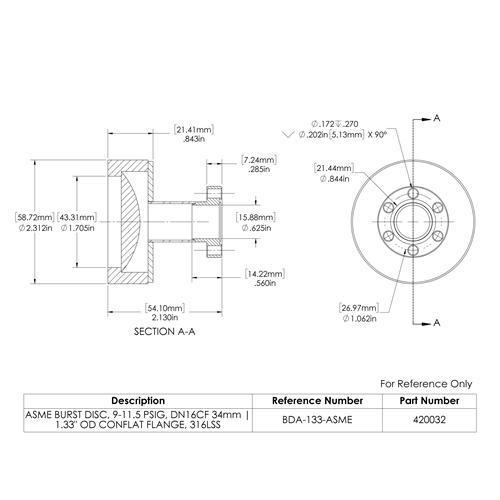

420032, ASME Burst Disc, 9-11.5 psig, DN16CF 34mm | 1.33" OD ConFlat Flange, 316Lss

Part Number / SKU
420032
$698.25 Special Price $558.60
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Rupture disk / safety pressure disc delivers reliable, consistent overpressure rupture protection
  • Pressure relief range: 9 to 11.5 psig
  • Ultra high vacuum (UHV) compatible all metal construction
  • Protection of systems with hazardous gases
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
  • 316L stainless steel body and disk membrane
  • Bakeable to 450¬∞C
  • Compact design with no moving parts
  • Calculated flow rates: 107 SCFM on DN16CF 34mm | 1.33" (1-1/3 inch) OD ConFlat flange assembly

More Information

Specifications

Specifications
Weight (lb) 0.75
Material 316L (1.4404 | UNS31603) Stainless Steel
Reference Number BDA-133-ASME
Temperature Range Bakeable to 450°C
Vacuum Series Ultra High Vacuum (UHV)
Flange Size DN16CF 34mm | 1.33" (1 1/3") OD Mini CF
Flange Type ConFlat CF Flange
