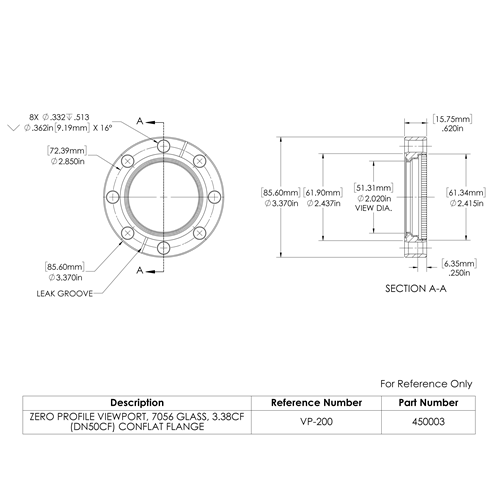

Zero Profile Viewport, 7056 Glass, 3.38CF (DN50CF) Conflat Flange
Specifications
Zero-length offers greater distortion-free view area
>90% Transmission from 360nm to 2300nm
CF and weld mount bakeable to 400°C, 10°C/Min gradient
ISO Kwik-Flange® and Large Flanges bakeable to 200°C, 10°C/Min gradient
Optional AR Coatings available
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

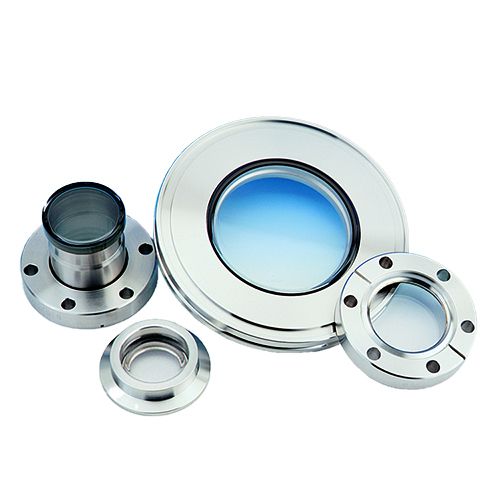

Glass Viewport Introduction
Glass viewports are an economical, practical and common solution for vacuum observation ports. Glass viewports are typically sealed to low expansion nickel-iron alloys or 300 series stainless steel metal sleeves using the latest in glass-to-metal bonding technology. The material in MDC Precision glass viewports is Corning 7056 glass, the most commonly used vacuum window material in the industry.
Specifications
Zero-length offers greater distortion-free view area
>90% Transmission from 360nm to 2300nm
CF and weld mount bakeable to 400°C, 10°C/Min gradient
ISO Kwik-Flange® and Large Flanges bakeable to 200°C, 10°C/Min gradient
Optional AR Coatings available
Features
Corning type 7056 (Borosilicate) glass
Versatile general purpose viewports for HV and UHV
Bakeable to 400°C with good resistance to thermal shock
Non-magnetic option with 316LN materials available on request
More Information
Specifications
| Weight (lb) | 1.00 |
| Lens Grade | 7056 |
| Lens Thickness | .170" |
| Viewport Type | Glass |
| Mounting Style | Conflat Flange (CF) |
