450008, Zero Profile Viewport, 7056 Glass, 8.00CF (DN160CF) Conflat Flange

Part Number / SKU
450008
$1,539.00
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Zero-length offers greater distortion-free view area

>90% Transmission from 360nm to 2300nm

CF and weld mount bakeable to 400°C, 10°C/Min gradient

ISO Kwik-Flange® and Large Flanges bakeable to 200°C, 10°C/Min gradient

Optional AR Coatings available

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

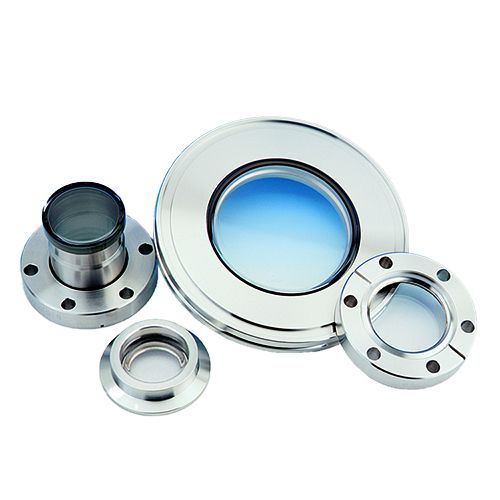

Glass Viewport Introduction

Glass viewports are an economical, practical and common solution for vacuum observation ports.  Glass viewports are typically sealed to low expansion nickel-iron alloys or 300 series stainless steel metal sleeves using the latest in glass-to-metal bonding technology.  The material in MDC Precision glass viewports is Corning 7056 glass, the most commonly used vacuum window material in the industry.

Specifications

Zero-length offers greater distortion-free view area

>90% Transmission from 360nm to 2300nm

CF and weld mount bakeable to 400°C, 10°C/Min gradient

ISO Kwik-Flange® and Large Flanges bakeable to 200°C, 10°C/Min gradient

Optional AR Coatings available

Features

Corning type 7056 (Borosilicate) glass

Versatile general purpose viewports for HV and UHV

Bakeable to 400°C with good resistance to thermal shock

Non-magnetic option with 316LN materials available on request

More Information

Specifications

Specifications
Weight (lb) 4.00
Glass Outside Diameter 5.38"
Lens Grade 7056
Lens Thickness .375"
Viewport Type Glass
Mounting Style Conflat Flange (CF)
