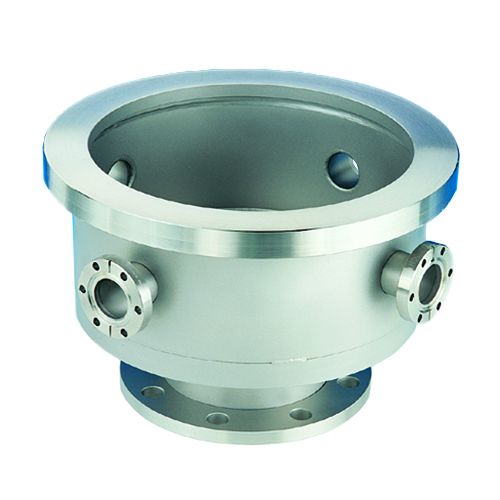

523050, Base Well, Kwik-Flange KF Side Ports, 12" (304.8mm), ANSI-4, NW40, 4 Ports, 304ss

Name: 523050, Base Well, Kwik-Flange KF Side Ports, 12" (304.8mm), ANSI-4, NW40, 4 Ports, 304ss
SKU: 523050
Price: 7337.87 USD
Availability: InStock

Part Number / SKU

523050

$7,337.87

Availability: Backordered

This product is currently on back order (orders are still accepted).

Quantity:

0 Available

Standard Lead Time:

12 weeks

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Choice of 2.75" (69.85mm) Del Seal CF flange or Kwik-Flange KF port connections on Base Wells
Standard ASA pump port flange, with optional Del Seal CF or ISO Large-Flange LF port
304 Stainless steel construction
Elastomer seal surface

Nominal Size 12" (304.8mm)

Pump Port ANSI-4

No. Ports 4

Port Flange O.D. 2.16" (54.86mm)

ISO REF. NW40

Material 304 stainless steel

Weight 77lbs (34.93kg)

More Information

Specifications

Specifications
Weight (lb)	250.000000
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
