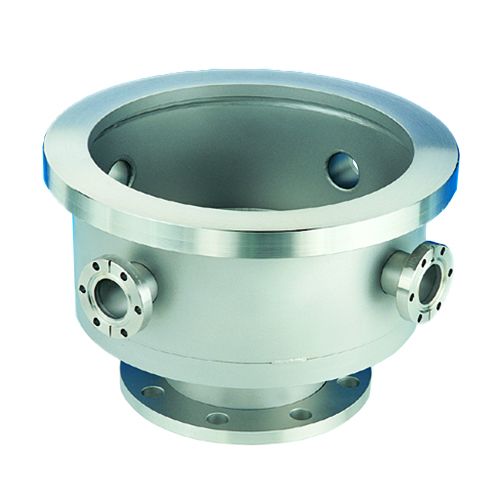

523053, Base Well, Kwik-Flange KF Side Ports, 18" (457.2mm), ANSI-6, NW40, 8 Ports, 304ss

Part Number / SKU
523053
$6,782.04
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
12 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Choice of 2.75" (69.85mm) Del Seal CF flange or Kwik-Flange KF port connections on Base Wells
  • Standard ASA pump port flange, with optional Del Seal CF or ISO Large-Flange LF port
  • 304 Stainless steel construction
  • Elastomer seal surface

Nominal Size                 18" (457.2mm)

Pump Port                      ANSI-6

No. Ports                        8

Port Flange O.D.            2.16" (54.86mm)

ISO REF.                           NW40

Material                          304 stainless steel

Weight                             154lbs (69.85kg)

More Information

Specifications

Specifications
Weight (lb) 250.000000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
