Magnetic Transporter, DN40CF 2.75" Del-Seal CF ConFlat Flange, 12.00" Travel, UHV (Guide Rod and Inline 90V DC Motor Options Available)

• Continuous rotary motion when unguided
• Magnetically coupled rotary / linear transporter rod
• Manual linear travel actuator (motorized option available)
• Rotary position lock when guided
• UHV-compatible materials
• Bakeable to 200¬∞C
• Del-Seal CF ConFlat flange port mounts

Transporter Type

• Unguided

Flange Size

• 2.75" (2 3/4 inches) | 70mm (69.9 millimeters)

Materials‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ‚ÄØ

• Flange and tube
  • 304 stainless steel (SAE 304SS | 1.4301 | S30400 | UNS S30400)
• Actuator housing and stop clamps
  • Anodized aluminum (AA)
• Bearings
  • 300 stainless steel (300SS)

Temperature Range

• 200¬∞C  (30¬∞C maximum with magnets or motorized)

Decoupling Axial Load (dual magnet configuration is available to increase axial load capacity)

• 5.00lb (5.00 pounds) | 2.3kg (2.3 kilograms) maximum

Torque

• 8.50lb-in (8.50 pounds to inches) | 3.9kg-mm (3.9 kilograms to millimeters) maximum

Lateral load

• 20.00lb (20.00 pounds) | 9.1kg (9.1 kilograms) maximum

Weight ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ ‚ÄØ

• ‚ÄØ10.0lb (10.0 pounds) | 4.5kg (4 1/2 kilograms)

Reference Number

• ‚ÄØMTM-12

Options

When ordering transporter options, add the option number and price to the desired UHV component part number listed above. For example: 665700-02. For total unit weight, add option weight to component weight.

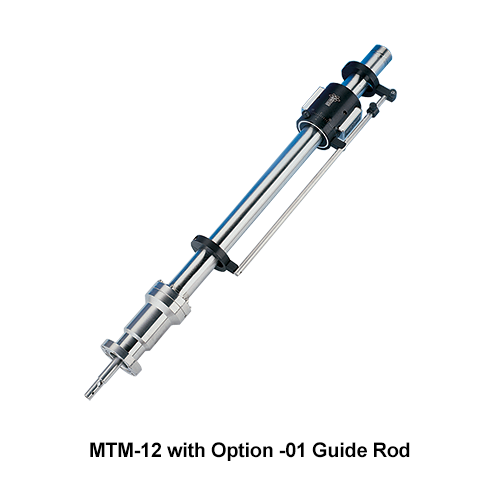

• Option -01    Guide Rod
  • Add-on weight: 3.00lb (3.00 pounds) | 1.4kg (1.4 kilograms)
• Option -02    Inline 90V Motor
  • Variable speed motor controller must be purchased separately
  • Add-on weight: 3.00lb (3.00 pounds) | 1.4kg (1.4 kilograms)
