Magnetic Transporter, DN40CF 2.75" Del-Seal CF ConFlat Flange, 24.00" Travel, UHV (Guide Rod and Inline 90V DC Motor Options Available)

Part Number / SKU
665701
$3,432.45
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
14 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.
  • Continuous rotary motion when unguided
  • Magnetically coupled rotary / linear transporter rod
  • Manual linear travel actuator (motorized option available)
  • Rotary position lock when guided
  • UHV-compatible materials
  • Bakeable to 200°C
  • Del-Seal CF ConFlat flange port mounts

Transporter Type

  • Unguided

Flange Size

  • 2.75" (2 3/4 inches) | 70mm (69.9 millimeters)

Materials                                       

  • Flange and tube
    • 304 stainless steel (SAE 304SS | 1.4301 | S30400 | UNS S30400)
  • Actuator housing and stop clamps
    • Anodized aluminum (AA)
  • Bearings
    • 300 stainless steel (300SS)

Temperature Range

  • 200°C  (30°C maximum with magnets or motorized)

Decoupling Axial Load (dual magnet configuration is available to increase axial load capacity)

  • 5.00lb (5.00 pounds) | 2.3kg (2.3 kilograms) maximum

Torque

  • 8.50lb-in (8.50 pounds to inches) | 3.9kg-mm (3.9 kilograms to millimeters) maximum

Lateral load

  • 20.00lb (20.00 pounds) | 9.1kg (9.1 kilograms) maximum

Weight                    

  • 12.00lb (12.00 pounds) | 5.4kg (5.4 kilograms)

Options

When ordering transporter options, add the option number and price to the desired UHV component part number listed above. For example: 665700-02. For total unit weight, add option weight to component weight.

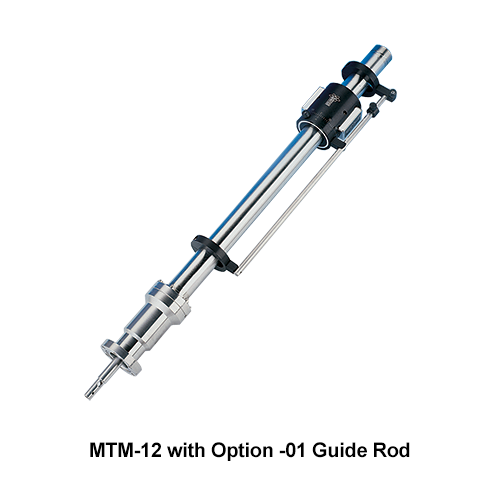

  • Option -01    Guide Rod
    • Add-on weight: 3.00lb (3.00 pounds) | 1.4kg (1.4 kilograms)
  • Option -02    Inline 90V Motor
    • Variable speed motor controller must be purchased separately
    • Add-on weight: 3.00lb (3.00 pounds) | 1.4kg (1.4 kilograms)

More Information

Specifications

Specifications
Weight (lb) 12.000000
Reference Number MTM-24
Vacuum Range 1x10-11 Torr | | 10-11 mbar
Vacuum Series Ultra High Vacuum (UHV)
Linear Travel 24.00" (24.00 inches) | 610.0mm (609.6 millimeters)
Manipulation Type Magnetic Transporters
Motion Type Magnetic
Shaft Length Min-Max 1.00" (1.00 inch) | 25.4mm (25.4 millimeters) Minimum - 25.00" (25.00 inches) | 635.0mm (635.0 millimeters) Maximum
Stroke Length 24.00" (24.00 inches) | 610.0mm (609.6 millimeters)
