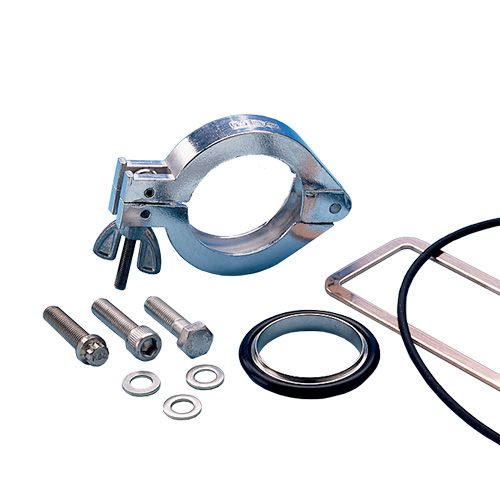

710002, ISO KF Kwik-Flange, Centering Ring, NW40, DN40KF, FKM Elastomer, Stainless Steel, (1 Per Pack) Includes one elastomer gasket seal

Part Number / SKU
710002
$13.65
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Standard ring mates two ISO KF Kwik-Flanges™ of equal size
  • Reducer ring mates two ISO KF Kwik-Flanges™ of unequal sizes
  • Includes elastomer gasket
  • Stainless steel construction
  • Vacuum rated to 1x10-8 Torr
  • EU and Metric Catalog Part #: 7710002

Specifications

Material                                             

  • Ring                            304ss
  • Gaskets                    Elastomer Gasket

Vacuum Range                  Vacuum rated to 1x10-8 Torr

Temperature Range          Bakeable to 150°C

Weight                                   0.4lb to 1lb  or 0.2kg to 0.5kg maximum

More Information

Specifications

Specifications
Weight (lb) 0.25
Flange Type ISO KF Kwik-Flange
