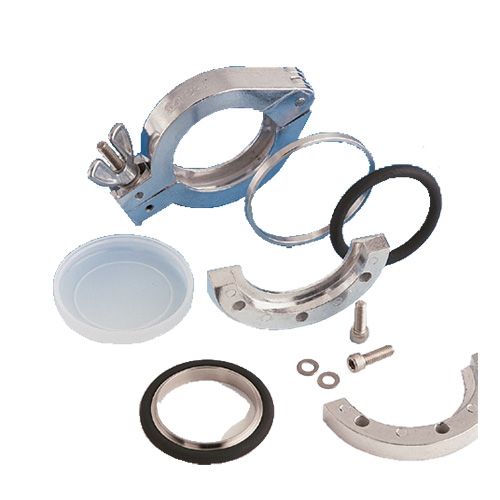

710011, Reducer Centering Ring, NW25 to NW20, ISO KF, Kwik Flange, FKM Elastomer, Stainless Steel

Part Number / SKU
710011
$14.70
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Standard ring mates two ISO KF Kwik-Flanges™ of equal size
  • Reducer ring mates two ISO KF Kwik-Flanges™ of unequal sizes
  • Includes elastomer gasket
  • Stainless steel construction
  • Vacuum rated to 1x10-8 Torr

Specifications

Material                                             

  • Ring                      304ss or Aluminum
  • Gaskets                 Elastomer Gasket

Vacuum Range                  Vacuum rated to 1x10-8 Torr

Temperature Range          Bakeable to 150°C

Weight                             0.4lb to 1lb  or 0.2kg to 0.5kg maximum



More Information

Specifications

Specifications
Weight (lb) 0.250000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Flange Type ISO KF Kwik-Flange
