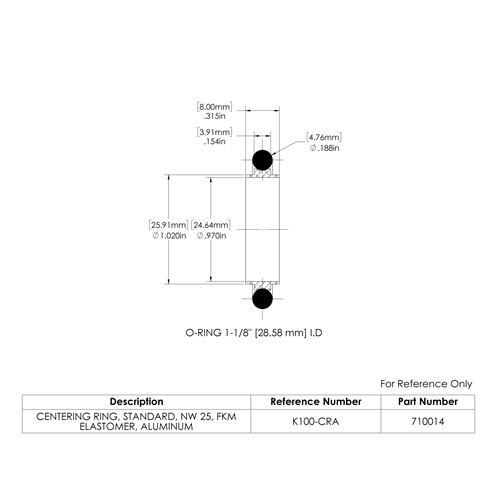

710014, Centering Ring, Standard, NW25, DN25KF, ISO, KF, FKM Elastomer, Aluminum, (EU/Metric PN: 7710014)

Part Number / SKU
710014
$9.98
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

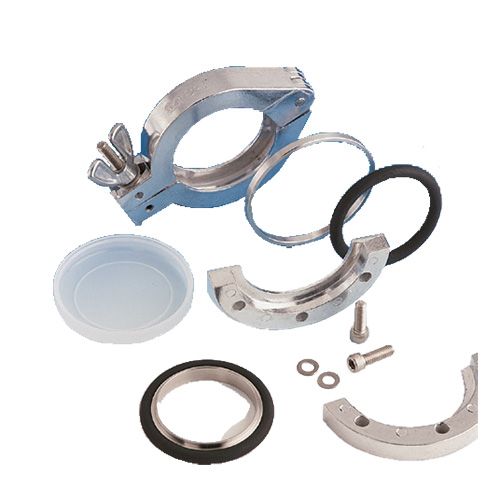

  • Standard ring mates two ISO KF Kwik-Flanges™ of equal size
  • Includes elastomer gasket
  • Aluminum construction Vacuum rated to 1x10-8 Torr

Specifications

Material                                             

  • Ring                      Aluminum
  • Gaskets                 Fluorocarbon-based fluoroelastomer (FKM / FPM) Elastomer Gasket

Vacuum Range                  Vacuum rated to 1x10-8 Torr

Temperature Range          Bakeable to 200°C ; Sustained use to 150°C

Weight                             0.4lb to 1lb  or 0.2kg to 0.5kg maximum



More Information

Specifications

Specifications
Weight (lb) 0.250000
Flange Type ISO KF Kwik-Flange
