Centering Ring, Standard, NW40, DN40KF, FKM Elastomer, Aluminum, (EU/Metric PN: 7710015)

Part Number / SKU
710015
$11.55
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

710015_A.DWG Download
710015.SLDDRW Download
710015_A.STEP Download
710015.SLDPRT Download
710015_A.PDF Download
710015_TechnicalSpecs.rtf Download

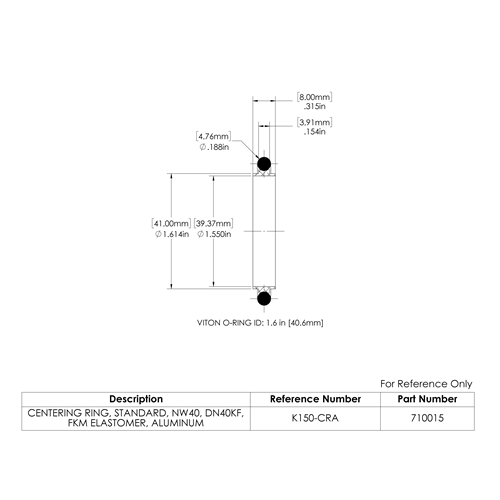

710015_A.PNG Download

Features

  • Standard ring mates two ISO KF Kwik-Flanges™ of equal size
  • Includes elastomer gasket
  • Aluminum construction Vacuum rated to 1x10-8 Torr
  • Europe and Metric Catalog Equivalent Part Number: 7710015

Specifications

Material                                             

  • Ring                      Aluminum
  • Gaskets                 Fluorocarbon-based fluoroelastomer (FKM / FPM) Elastomer Gasket

Vacuum Range                  Vacuum rated to 1x10-8 Torr

Temperature Range          Bakeable to 200°C ; Sustained use to 150°C

Weight                             0.4lb to 1lb  or 0.2kg to 0.5kg maximum



More Information

Specifications

Specifications
Weight (lb) 0.25
Flange Type ISO KF Kwik-Flange
