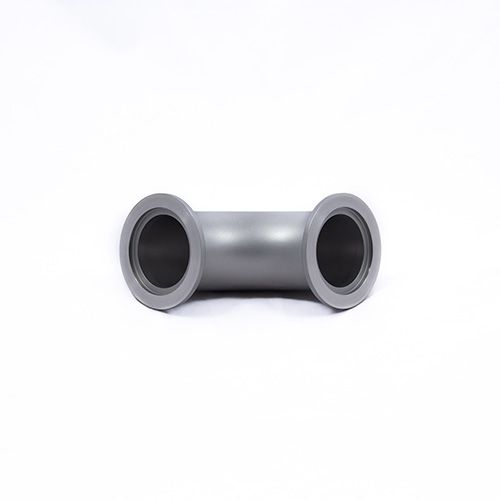

90 deg Elbow, NW40, Radius

Part Number / SKU
723002
$71.40
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

723002_C.DWG Download
723002_TechnicalSpecs.rtf Download
723002.SLDDRW Download
723002_C.STEP Download
723002_C.PDF Download
723002.SLDASM Download

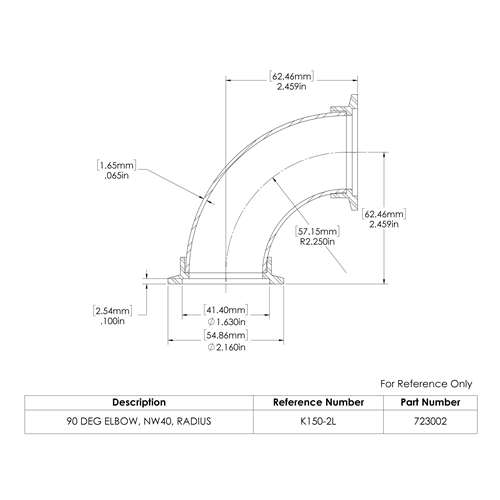

723002_C.PNG Download
90 deg Elbow, NW40, Radius

More Information

Specifications

Specifications
Weight (lb) 0.50
Bend Type Radius
Length 2.46
Wall Thickness .065
Flange Size NW40
Flange Type ISO KF Kwik-Flange
