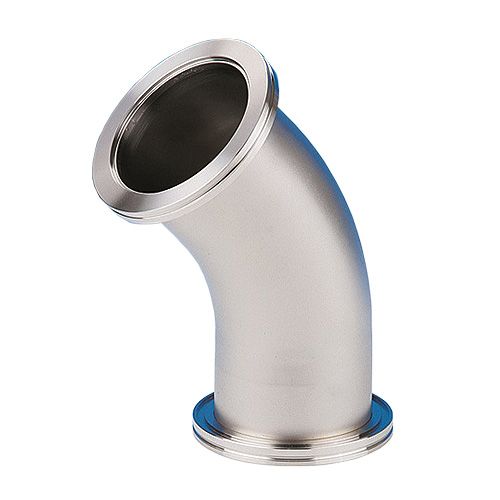

45 deg Elbow, NW16, Radius

Part Number / SKU
723014
$56.70
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

723014_B.pdf Download
723014.SLDASM Download

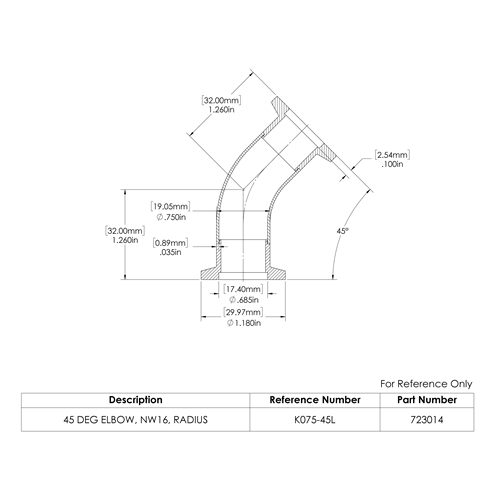

723014_B.PNG Download
723014_TechnicalSpecs.rtf Download
723014_B.STEP Download
723014.SLDDRW Download
723014_B.DWG Download
45 deg Elbow, NW16, Radius

More Information

Specifications

Specifications
Weight (lb) 0.50
Bend Type Radius
Length 1.26
Wall Thickness .035
Flange Size NW16
Flange Type ISO KF Kwik-Flange
