801005, Single Claw Clamp, ISO NW320-500, Al

Part Number / SKU
801005
$12.60
Availability: In Stock
Quantity:
24 Available
Standard Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

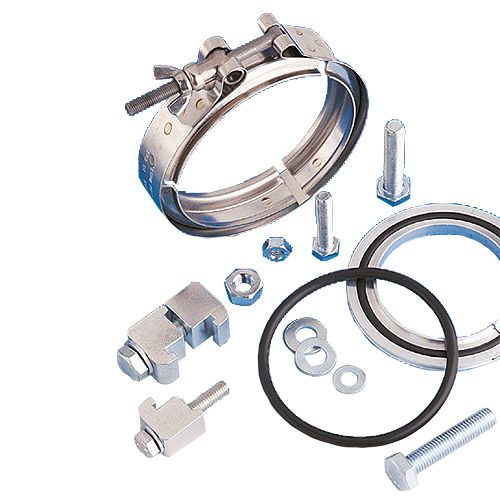

Single claw-clamp assemblies are used to mate a clamp-style ISO Large-Flange™to a threaded bolt-style Large-Flange™, such as on a gate valve. The vacuum seal is made by compressing the o-ring between the mating flanges. This is done by alternately wrench-tightening opposing pairs of clamps until the first metal-to-metal contact is made between the inner surfaces of the flanges and the spacing lip of the centering ring.

  • Fastens ISO LF Large-Flange: NW320, NW400, NW500
  • Quick make and break
  • Zinc-plated steel bolt
  • Aluminum (AL) claw construction
  • Requires centering ring with elastomer gasket
  • M12 X 35 metric bolt

More Information

Specifications

Specifications
Weight (lb) 0.250000
Material 6061-T6 Aluminum
Reference Number SC-12 | EU: SCC320/500
Vacuum Series High Vacuum (HV)
Flange Type ISO LF Large-Flange
