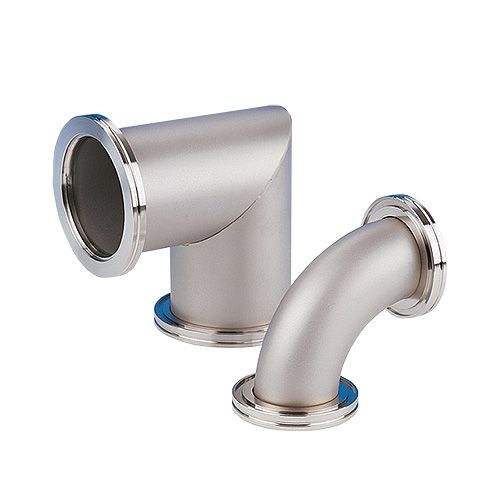

90 deg Elbow, NW160, Miter

Part Number / SKU
823002
Contact MDC for Price
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

823002_TechnicalSpecs.rtf Download
823002_A.STEP Download

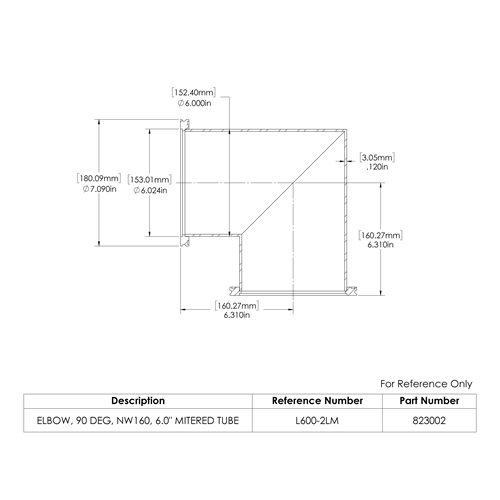

823002_A.PNG Download
823002.SLDDRW Download
823002.SLDASM Download
823002_A.DWG Download
823002_A.PDF Download
90 deg Elbow, NW160, Miter

More Information

Specifications

Specifications
Weight (lb) 10.00
Bend Type Miter
Length 6.31
Wall Thickness .120
Flange Size NW160
Flange Type ISO LF Large-Flange
