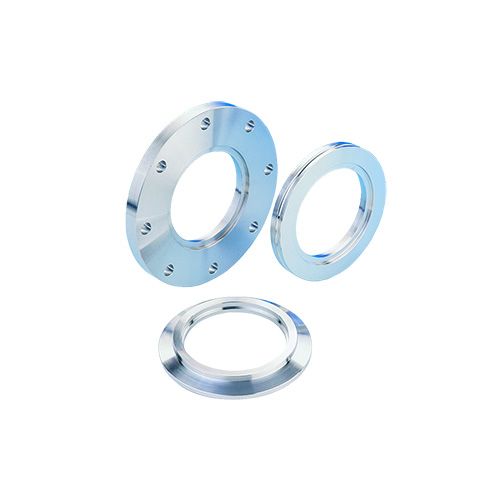

ISO-LF Large-Flange, NW80, 3", Weld, Bolted

Part Number / SKU
850008
$131.25
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

850008_A.DWG Download
850008_A.STEP Download

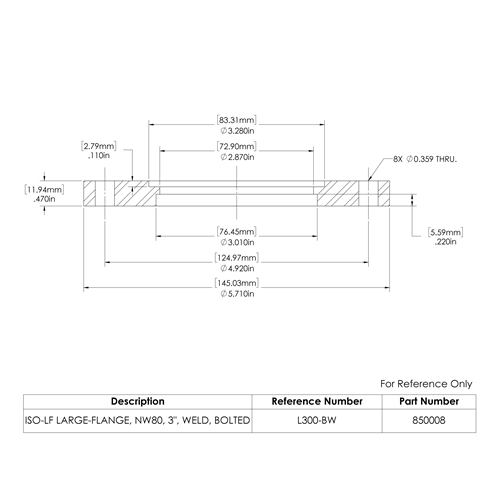

850008_A.PDF Download
850008_A.PNG Download
850008_TechnicalSpecs.rtf Download
850008.SLDPRT Download
850008.SLDDRW Download
ISO-LF Flange, NW80, 3", Weld, Bolted
850008.stp (68.78 kB)

More Information

Specifications

Specifications
Weight (lb) 3.00
Fastening Method Bolt
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Flange Size NW80
Flange Type ISO LF Large-Flange
