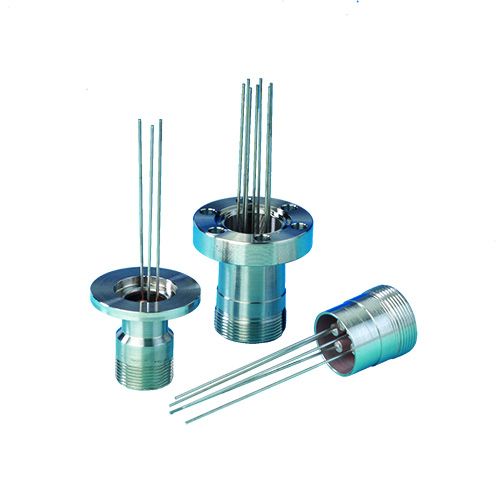

Multipin Feedthrough, 7 Pins, 0.032" (0.8mm) Diameter Conductors, K075 (NW16) Kwik-Flange

Part Number / SKU
9113005
$387.75
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              500V DC maximum

Current                                               3.5 Amps per pin

Temperature Rating

Conflat (CF)                                      -50°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

Multipin Feedthrough, 7 Pins, 0.032" Diameter Conductors, K075, NW16, Kwik-Flange ISO KF, Quick Flange

More Information

Specifications

Specifications
Weight (lb) 1.50
Thread Size 13/16-27
Vacuum Side Length 1.58
Feedthrough Type Multipin
Number of Pins 7
