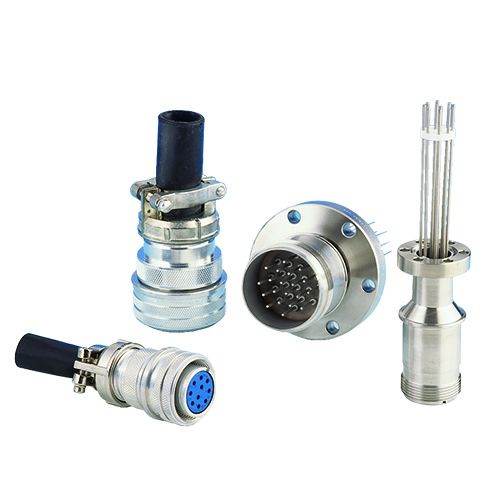

Multipin Feedthrough, 10 Pins, 0.056" (1.4mm) Diameter Conductors, 700V, 10 Amps, Weldable
Part Number / SKU
9131002
$339.00
Availability:
6 Weeks
Specifications
Voltage 700V DC maximum
Current 10 Amps per pin
Temperature Rating
Conflat (CF) -50°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -100°C to 450°C
Air-side connector -55°C to 125°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
Multipin Feedthrough, 10 Pins, 0.056" Diameter Conductors, 700V, 10 Amps, Weldable
More Information
Specifications
Weight (lb) | 1.00 |
Thread Size | 1 1/8-18 |
Vacuum Side Length | 3.19 |
Feedthrough Type | Multipin |
Number of Pins | 10 |
Weld Sleeve Outside Diameter | 3/4 |
