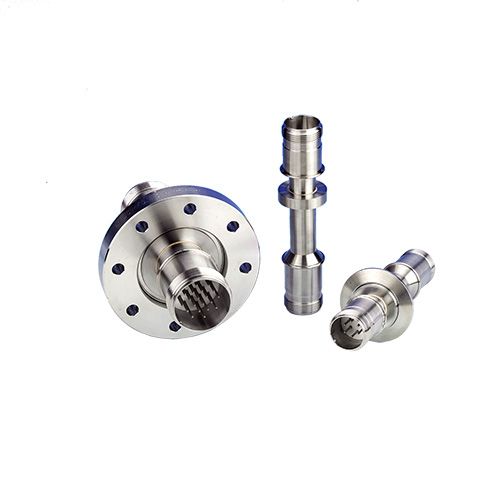

Multipin Feedthrough, 10 Pins, 0.056" (1.4mm) Diameter Conductors, 700V, 10 Amps, Double-Ended, Weldable

Part Number / SKU
9131007
$1,008.00 Special Price $806.40
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              700V DC maximum

Current                                               10 Amps per pin

Temperature Rating

Conflat (CF)                                      -50°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -55°C to 125°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

Multipin Feedthrough, 10 Pins, 0.056" Diameter Conductors, 700V, 10 Amps, Double-Ended, Weldable

More Information

Specifications

Specifications
Weight (lb) 1.00
Thread Size 1 1/8-18
Vacuum Side Length 3.49
Feedthrough Type Multipin
Number of Pins 10
Weld Sleeve Outside Diameter 1 3/8
