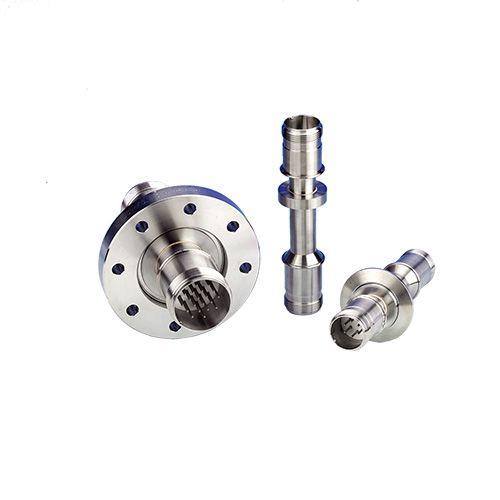

Multipin Feedthrough, 20 Pins, 0.056" (1.4mm) Diameter Conductors, 700V, 10 Amps, Double-Ended, Weldable
Part Number / SKU
9131008
$1,232.70
Availability:
6 Weeks
Specifications
Voltage 700V DC maximum
Current 10 Amps per pin
Temperature Rating
Conflat (CF) -50°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -100°C to 450°C
Air-side connector -55°C to 125°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
Multipin Feedthrough, 20 Pins, 0.056" Diameter Conductors, 700V, 10 Amps, Double-Ended, Weldable
More Information
Specifications
Weight (lb) | 1.00 |
Thread Size | 1 3/4-18 |
Vacuum Side Length | 3.50 |
Feedthrough Type | Multipin |
Number of Pins | 20 |
Weld Sleeve Outside Diameter | 2 1/2 |
