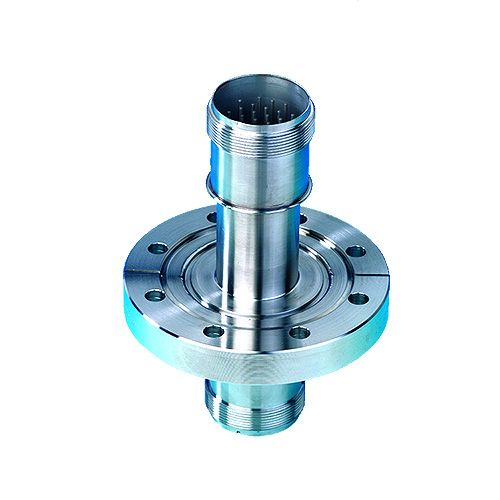

9132013, Multipin Feedthrough, 20 Pins, Double Ended w/ Air & Vacuum-side Connectors, 4.50" CF (DN63 CF) Conflat Flange

Part Number / SKU
9132013
$1,408.05
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              700V DC maximum

Current                                               10 Amps per pin

Temperature Rating

Conflat (CF)                                      -50°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -55°C to 125°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

Multipin Feedthrough, 20 Pins, Double Ended w/ Air & Vacuum-side Connectors, 4.50" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 3.00
Thread Size 1 3/4-18
Vacuum Side Length 3.45
Feedthrough Type Multipin
Number of Pins 20
