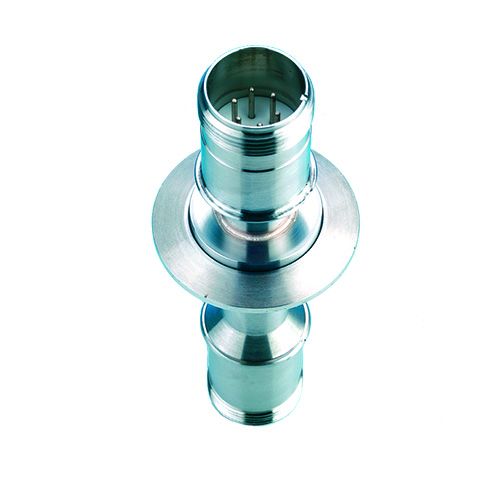

Multipin Feedthrough, 6 Pins, Double Ended, K150 (NW40) Kwik-Flange

Part Number / SKU
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              700V DC maximum

Current                                               10 Amps per pin

Temperature Rating

Conflat (CF)                                      -50°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -55°C to 125°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

Multipin Feedthrough, 6 Pins, Double Ended, K150, NW40, Kwik-Flange ISO KF, Quick Flange

More Information


Weight (lb) 1.50
Thread Size 1 1/8-18
Vacuum Side Length 3.39
Feedthrough Type Multipin
Number of Pins 6
