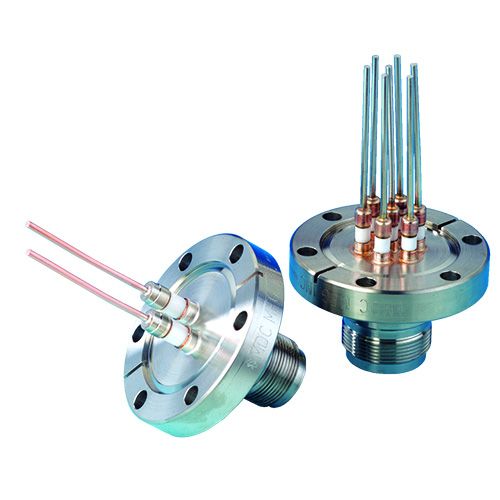

Multipin Feedthrough, 3 Pins, 0.092" (2.3mm) Diameter Conductors, 2.75" CF (DN40 CF) Conflat Flange

Part Number / SKU
9142003
$327.60
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              700V DC maximum

Current                                               23 Amps per pin

Temperature Rating

Conflat (CF)                                      -50°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -55°C to 125°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

w.

9142003.STEP

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

9142003.STEP Download
Multipin Feedthrough, 3 Pins, 0.092" Diameter Conductors, 2.75" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 1.50
Conductor Material Nickel
Current 15
Feedthrough Type Multipin
Number of Pins 3
Weld Sleeve Outside Diameter 1 3/8-18
