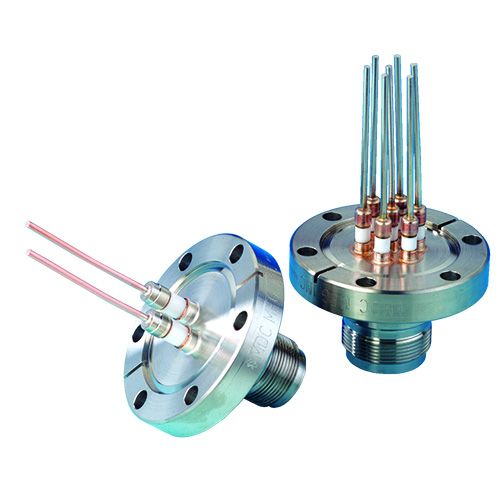

Multipin Feedthrough, 8 Pins, 0.094" (2.3mm) Diameter Conductors, 2.75" CF (DN40 CF) Conflat Flange

Specifications

Voltage                                              700V DC maximum

Current                                               23 Amps per pin

Temperature Rating

Conflat (CF)                                      -50°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -55°C to 125°C
