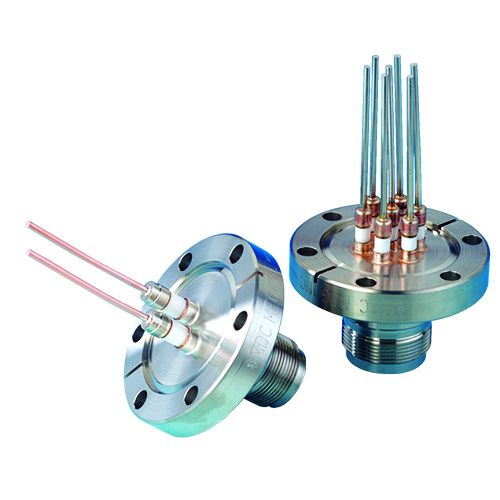

9142011, Multipin Feedthrough, 8 Pins, 0.092" (2.3mm) Diameter Conductors, 2.75" CF (DN40 CF) Conflat Flange
Part Number / SKU
9142011
$501.90
Availability:
3 Weeks
Specifications
Voltage 700V DC maximum
Current 23 Amps per pin
Temperature Rating
Conflat (CF) -50°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -100°C to 450°C
Air-side connector -55°C to 125°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
Multipin Feedthrough, 8 Pins, 0.092" Diameter Conductors, 2.75" Conflat Flange
More Information
Specifications
| Weight (lb) | 1.50 |
| Conductor Material | Nickel |
| Current | 15 |
| Feedthrough Type | Multipin |
| Number of Pins | 8 |
| Weld Sleeve Outside Diameter | 1 1/2-18 |
