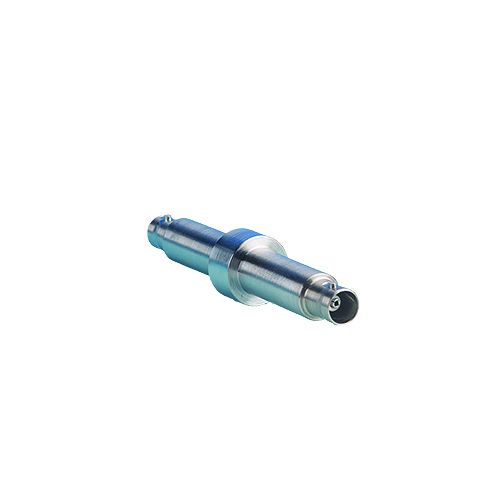

9211001, BNC Coaxial Feedthrough, 1-Pin, Grounded Shield, Double Ended, Weldable

Part Number / SKU
9211001
$179.55
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
4 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              500V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

BNC Coaxial Feedthrough, 1 Pin, Gounded Shield, Double Ended, Weldable

More Information

Specifications

Specifications
Weight (lb) 1.000000
Feedthrough Type Coaxial
Weld Sleeve Outside Diameter 3/4 INCH
