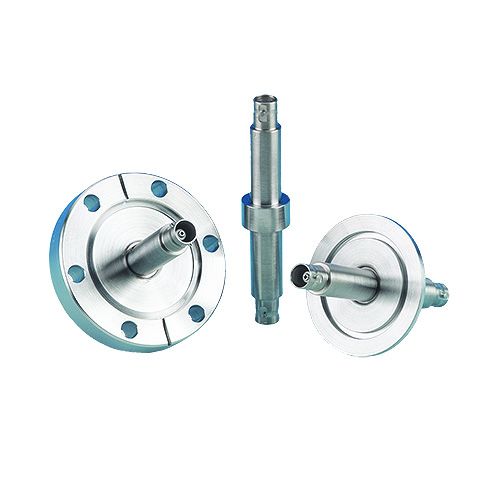

9212007, BNC Coaxial Feedthrough, 2-Pin, Grounded Shield, Double Ended, 2.75" CF (DN40 CF) Conflat Flange

$415.00
SKU
9212007
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
4 weeks

Specifications

Voltage                                              500V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

More Information

More Information
Weight 1.000000
BNC Coaxial Feedthrough, 2 Pins, Gounded Shield, Double Ended, 2.75" Conflat Flange
