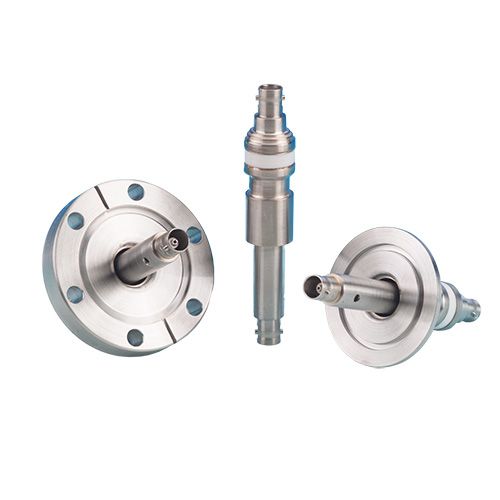

9213011, BNC Coaxial Feedthrough, 1-Pin, Floating Shield, Double Ended, K075 (NW16) Kwik-Flange
Voltage 500V DC maximum
Current 3 Amps per pin
Conflat (CF) -200°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -100°C to 450°C
Air-side connector -65°C to 165°C
