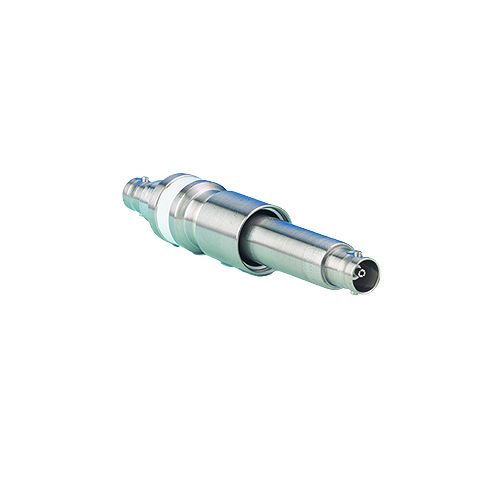

MHV Coaxial Feedthrough, 1-Pin, Floating Shield, Double Ended, Weldable

Specifications

Voltage                                              5,000V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
