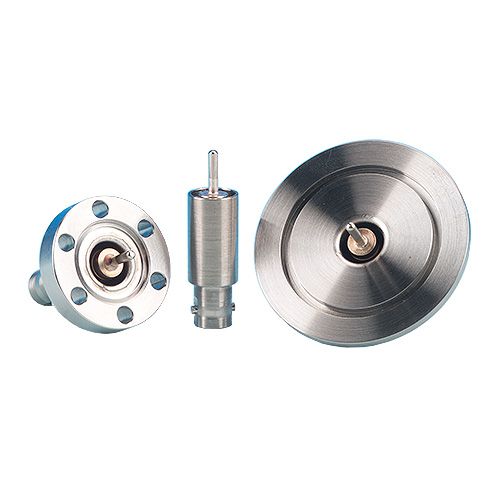

9223003, MHV Coaxial Feedthrough, 3-Pin, Grounded Shield, K200 (NW50) Kwik-Flange

Part Number / SKU
9223003
$208.95
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              5,000V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

MHV Coaxial Feedthrough, 3 Pins, Gounded Shield, K200, NW50, Kwik-Flange ISO KF, Quick Flange

More Information

Specifications

Specifications
Weight (lb) 1.50
Feedthrough Type Coaxial
Number of Pins 3
