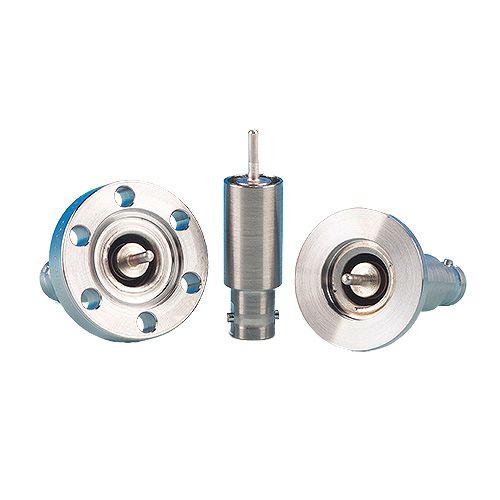

9232001, SHV-5 Coaxial Feedthrough, 1-Pin, Grounded Shield, 2.75" CF (DN40 CF) Conflat Flange

Part Number / SKU
9232001
$148.05
Availability: In Stock

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
1 Available
Lead Time:
4 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              5,000V DC maximum

Current                                               5 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

SHV-5 Coaxial Feedthrough, 1 Pin, Gounded Shield, 2.75" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 1.500000
Feedthrough Type Coaxial
Number of Pins 1
