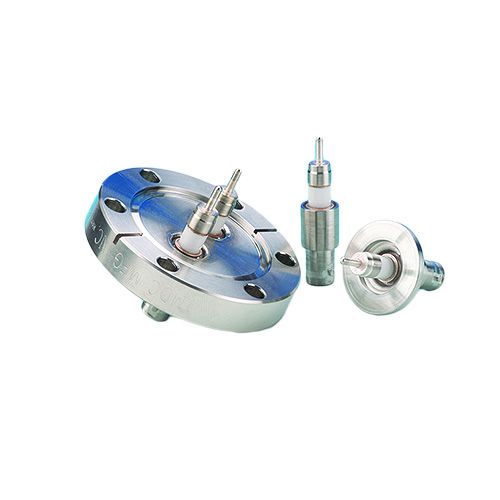

SHV-5 Coaxial Feedthrough, 1-Pin, Exposed, Grounded Shield, 1.33" CF (DN16 CF) Conflat Flange

Part Number / SKU
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              5,000V DC maximum

Current                                               5 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

SHV-5 Coaxial Feedthrough, 1 Pin, Exposed, Gounded Shield, 1.33" Conflat Flange (199.12 kB)

More Information


Weight (lb) 1.50
Feedthrough Type Coaxial
Number of Pins 1
