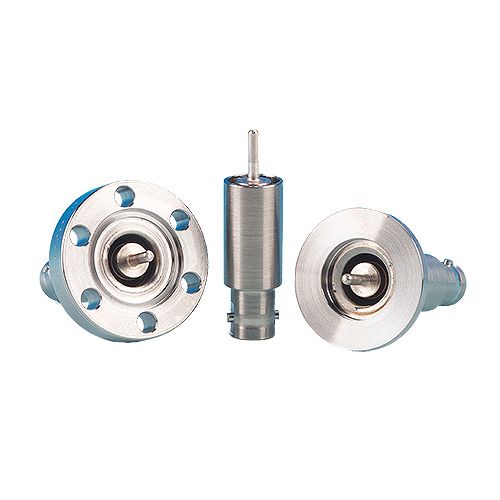

SHV-5 Coaxial Feedthrough, 1-Pin, Grounded Shield, K150 (NW40) Kwik-Flange
Part Number / SKU
9233001
$141.75
Availability:
6 Weeks
Specifications
Voltage 5,000V DC maximum
Current 5 Amps per pin
Temperature Rating
Conflat (CF) -200°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -100°C to 450°C
Air-side connector -65°C to 165°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
SHV-5 Coaxial Feedthrough, 1 Pin, Gounded Shield, K150, NW40, Kwik-Flange ISO KF, Quick Flange
More Information
Specifications
Weight (lb) | 1.50 |
Feedthrough Type | Coaxial |
Number of Pins | 1 |
