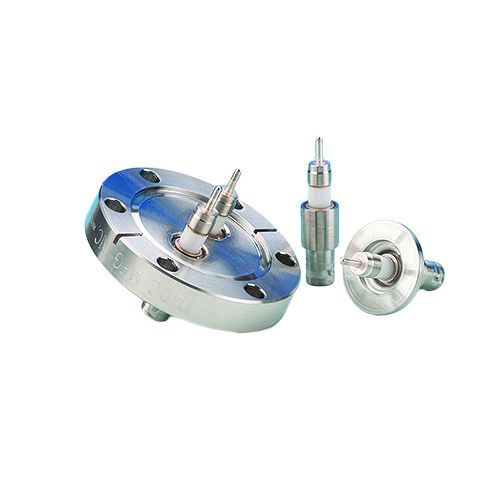

SHV-5 Coaxial Feedthrough, 3-Pin, Exposed, Grounded Shield, K200 (NW50) Kwik-Flange

Specifications

Voltage                                              5,000V DC maximum

Current                                               5 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C
