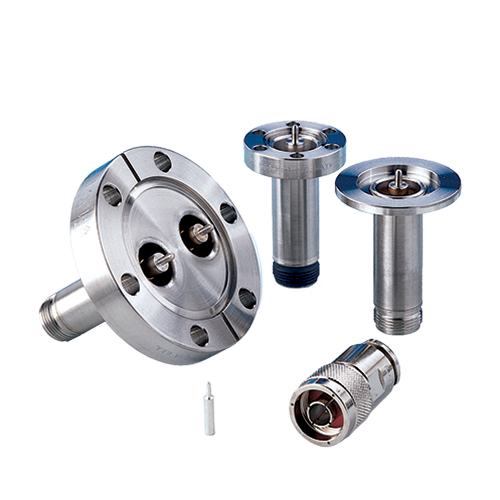

9242002, TYPE-N Coaxial Feedthrough, 2-Pin, Grounded Shield, 2.75" CF (DN40CF) Conflat Flange

Part Number / SKU
9242002
$524.00
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              500V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

TYPE-N Coaxial Feedthrough, 2 Pins, Gounded Shield, 2.75" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 1.50
Vacuum Series Ultra High Vacuum (UHV)
Voltage 500
Conductor Material Nickel
Connector Type Coaxial Type-N
Current 3
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Number of Pins 2
Mounting Style Conflat Flange (CF)
