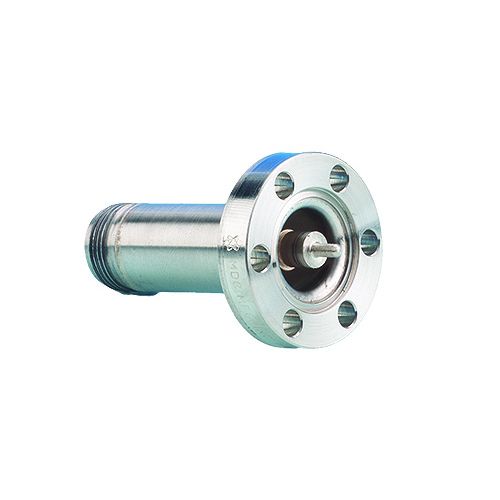

Type-N Coaxial Feedthrough, 1 Pin, Grounded Shield, Double Ended, 2.75" CF (DN40CF) Conflat Flange
Part Number / SKU
9242003
$397.95
Availability:
6 Weeks
Specifications
Voltage 500V DC maximum
Current 3 Amps per pin
Temperature Rating
Conflat (CF) -200°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -200°C to 450°C
Air-side connector -65°C to 165°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
Type-N Coaxial Feedthrough, 1 Pin, Gounded Shield, Double Ended, 2.75" Conflat Flange
More Information
Specifications
| Weight (lb) | 1.50 |
| Vacuum Series | Ultra High Vacuum (UHV) |
| Voltage | 500 |
| Conductor Material | Nickel |
| Connector Type | Coaxial Type-N |
| Current | 3 |
| DC(kV) Air | 500 |
| DC(kV) Vacuum | 500 |
| Feedthrough Type | Coaxial |
| Number of Pins | 1 |
| Mounting Style | Conflat Flange (CF) |
