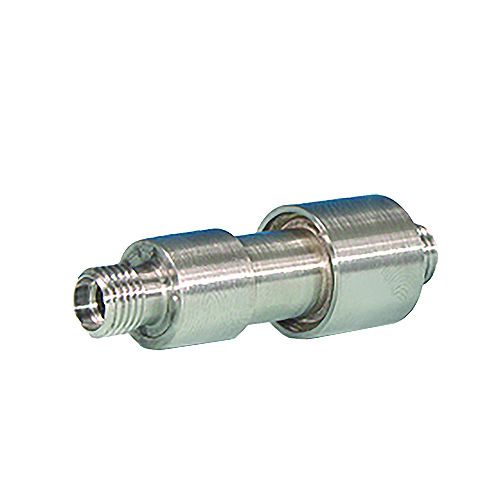

9251004, SMA Coaxial Feedthrough, 1-Pin, Grounded Shield, Double Ended, Weldable

Part Number / SKU
9251004
$616.00
Availability: In Stock

This product is currently on back order (orders are still accepted).

Quantity:
4 Available
Standard Lead Time:
4 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              700V DC maximum

Current                                               3 Amps per pin

Impedance Rating                             50Ω Matched

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

9251004.STEP

SMA Coaxial Feedthrough, 1 Pin, Gounded Shield, Double Ended, Weldable

More Information

Specifications

Specifications
Weight (lb) 1.870000
Vacuum Series Ultra High Vacuum (UHV)
Voltage 700
Conductor Material Stainless Steel
Connector Type Coaxial SMA
Current 3
DC(kV) Air 700
DC(kV) Vacuum 700
Feedthrough Type Coaxial
Frequency 8GHz
Number of Pins 1
Weld Sleeve Outside Diameter 1/2 INCH
Mounting Style Weldable
