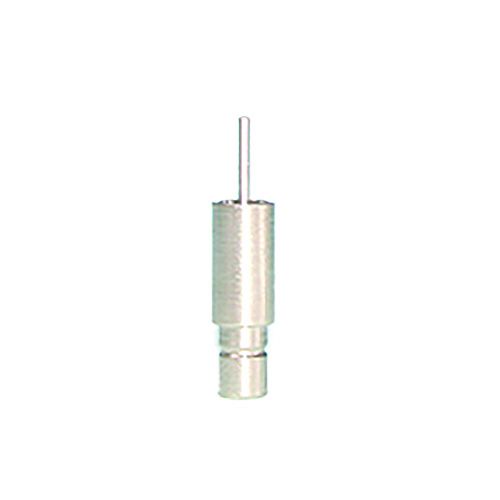

SMB Coaxial Feedthrough, 1-Pin, Grounded Shield, Weldable
Part Number / SKU
9251100
$154.35
Special Price
$138.92
Availability:
6 Weeks
Specifications
Voltage 700V DC maximum
Current 3 Amps per pin
Impedance Rating 50Ω Matched
Temperature Rating
Conflat (CF) -200°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -200°C to 450°C
Air-side connector -65°C to 165°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
SMB Coaxial Feedhtrough, 1 Pin, Gounded Shield, Weldable
More Information
Specifications
Weight (lb) | 1.87 |
Vacuum Series | Ultra High Vacuum (UHV) |
Voltage | 500 |
Conductor Material | Molybdenum |
Connector Type | Coaxial SMB |
Current | 2 |
DC(kV) Air | 500 |
DC(kV) Vacuum | 500 |
Feedthrough Type | Coaxial |
Number of Pins | 1 |
Weld Sleeve Outside Diameter | 1/2 INCH |
Mounting Style | Weldable |
