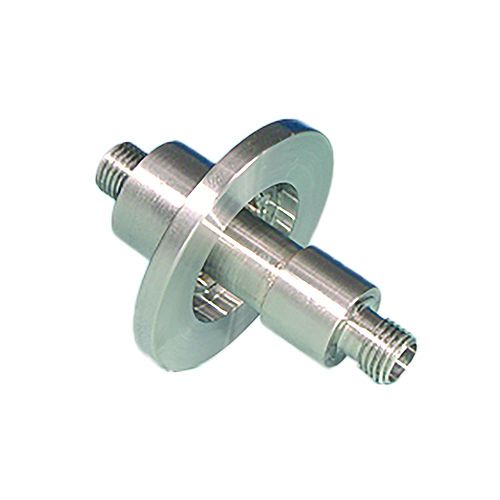

9253000, SMA Coaxial Feedthrough, 1-Pin, Grounded Shield, K075 (NW16) Kwik-Flange

Part Number / SKU
Availability: Backordered

This product is currently on back order (orders are still accepted).

0 Available
Standard Lead Time:
4 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.



Voltage                                              700V DC maximum

Current                                               1 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

SMA Coaxial Feedthrough, 1 Pin, Gounded Shield, K075, NW16, Kwik-Flange ISO KF, Quick Flange

More Information


Weight (lb) 1.000000
Vacuum Series High Vacuum (HV)
Voltage 700
Conductor Material Stainless Steel
Connector Type Coaxial SMA
Current 1
DC(kV) Air 700
DC(kV) Vacuum 700
Feedthrough Type Coaxial
Frequency 1GHz
Number of Pins 1
Mounting Style Kwik Flange (KF)
