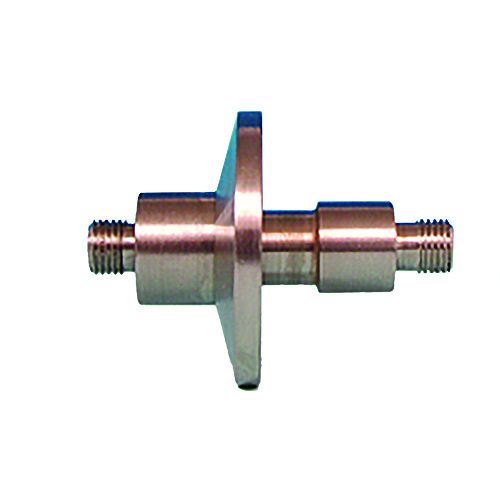

SMA Coaxial Feedthrough, Double Ended, LOW TEMP, K075 (NW16KF) Kwik-Flange

Part Number / SKU
9253004
$672.00
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              700V DC maximum

Current                                               3 Amps per pin

Impedance Rating                             50Ω Matched

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

SMA Coaxial Feedthrough, Double Ended, LOW TEMP WC

More Information

Specifications

Specifications
Weight (lb) 1.87
Vacuum Series High Vacuum (HV)
Voltage 700
Conductor Material Stainless Steel
Connector Type Coaxial SMA
Current 3
DC(kV) Air 700
DC(kV) Vacuum 700
Feedthrough Type Coaxial
Frequency 8GHz
Number of Pins 1
Mounting Style Kwik Flange (KF)
