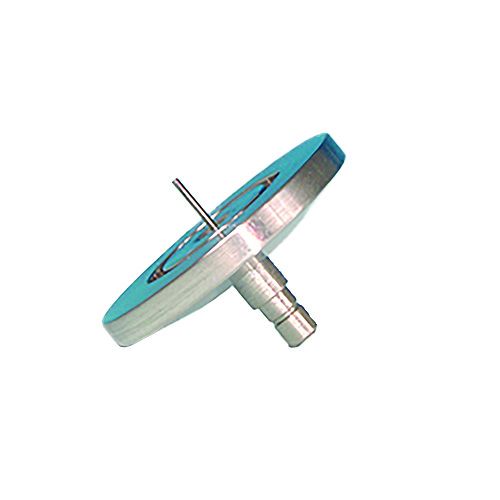

SMB Coaxial Feedthrough, 1-Pin, Grounded Shield, K075 (NW16) Kwik-Flange

Part Number / SKU
9253100
$248.85 Special Price $199.08
Availability: 6 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              700V DC maximum

Current                                               3 Amps per pin

Impedance Rating                             50Ω Matched

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

SMB Coaxial Feedhtrough, 1 Pin, Gounded Shield, K075, NW16, Kwik-Flange ISO KF, Quick Flange

More Information

Specifications

Specifications
Weight (lb) 1.87
Vacuum Series High Vacuum (HV)
Voltage 500
Conductor Material Molybdenum
Connector Type Coaxial SMB
Current 2
DC(kV) Air 500
DC(kV) Vacuum 500
Feedthrough Type Coaxial
Number of Pins 1
Mounting Style Kwik Flange (KF)
