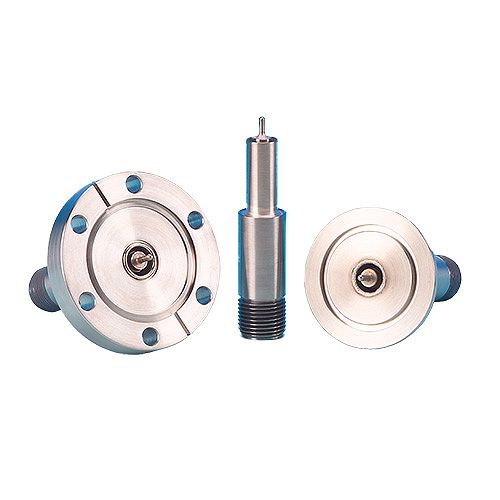

9262002, SHV-B (Bakeable) Coaxial Feedthrough, 2-Pin, Grounded Shield, 2.75" CF (DN40CF) Conflat Flange

Part Number / SKU
9262002
$745.50
Availability: 3 Weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Specifications

Voltage                                              7,500V DC maximum

Current                                               3 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -200°C to 450°C

Air-side connector                             -200°C to 350°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

SHV-B (Bakeable) Coaxial Feedthrough, 2 Pins, Gounded Shield, 2.75" Conflat Flange

More Information

Specifications

Specifications
Weight (lb) 1.00
Vacuum Series Ultra High Vacuum (UHV)
Voltage 7500
Conductor Material Stainless Steel
Connector Type Coaxial SHV-B
Current 3
Feedthrough Type Coaxial
Number of Pins 2
Mounting Style Conflat Flange (CF)
