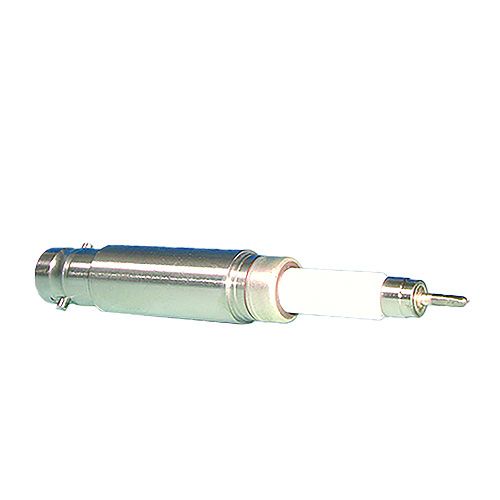

9271002, SHV-20 Coaxial Feedthrough, 1-Pin Exposed, Grounded Shield, Weldable
Part Number / SKU
9271002
$295.00
Availability:
Backordered
Quantity:
0 Available
Standard Lead Time:
4 weeks
Specifications
Voltage 20,000V DC maximum
Current 15 Amps per pin
Temperature Rating
Conflat (CF) -200°C to 450°C
ISO & Kwik-flange (KF) -20°C to 150°C
Weldable -100°C to 450°C
Air-side connector -65°C to 165°C
Product Attachments
We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.
SHV-20 Coaxial Feedthrough, 1 Pin Exposed, Gounded Shield, Weldable
More Information
Specifications
Weight (lb) | 1.000000 |
Feedthrough Type | Coaxial |
Weld Sleeve Outside Diameter | 5/8 INCH |
