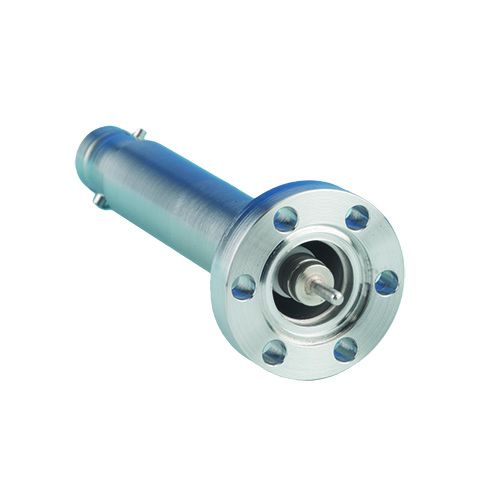

9272009, SHV-20 Coaxial Feedthrough, 1-Pin, Recessed, Grounded Shield, 1.33" CF (DN16 CF) Conflat Flange

Part Number / SKU
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.


Voltage                                              20,000V DC maximum

Current                                               15 Amps per pin

Temperature Rating

Conflat (CF)                                      -200°C to 450°C

ISO & Kwik-flange (KF)                     -20°C to 150°C

Weldable                                           -100°C to 450°C

Air-side connector                             -65°C to 165°C

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

VacOptix® seal technology has been developed for service in such demanding environments as corrosive chemical, cryogenic and ultra-high vacuum.  Only non-magnetic, low vapor pressure materials such as 304 stainless hardware and aluminum gaskets are employed to seal all available window materials.

Plane parallel windows are offered without anti-reflective coating.  Plano convex, plano concave and anti-reflective coatings are available upon on request at additional costs.

For special optical, chemical, pressure, cryogenic or vacuum needs please call technical sales

More Information


Weight (lb) 1.00
Vacuum Series Ultra High Vacuum (UHV)
Voltage 20kV
Conductor Material Nickel
Connector Type Coaxial SHV-20
Current 15
DC(kV) Air 20
DC(kV) Vacuum 20
Feedthrough Type Coaxial
Number of Pins 1
Mounting Style Conflat Flange (CF)
